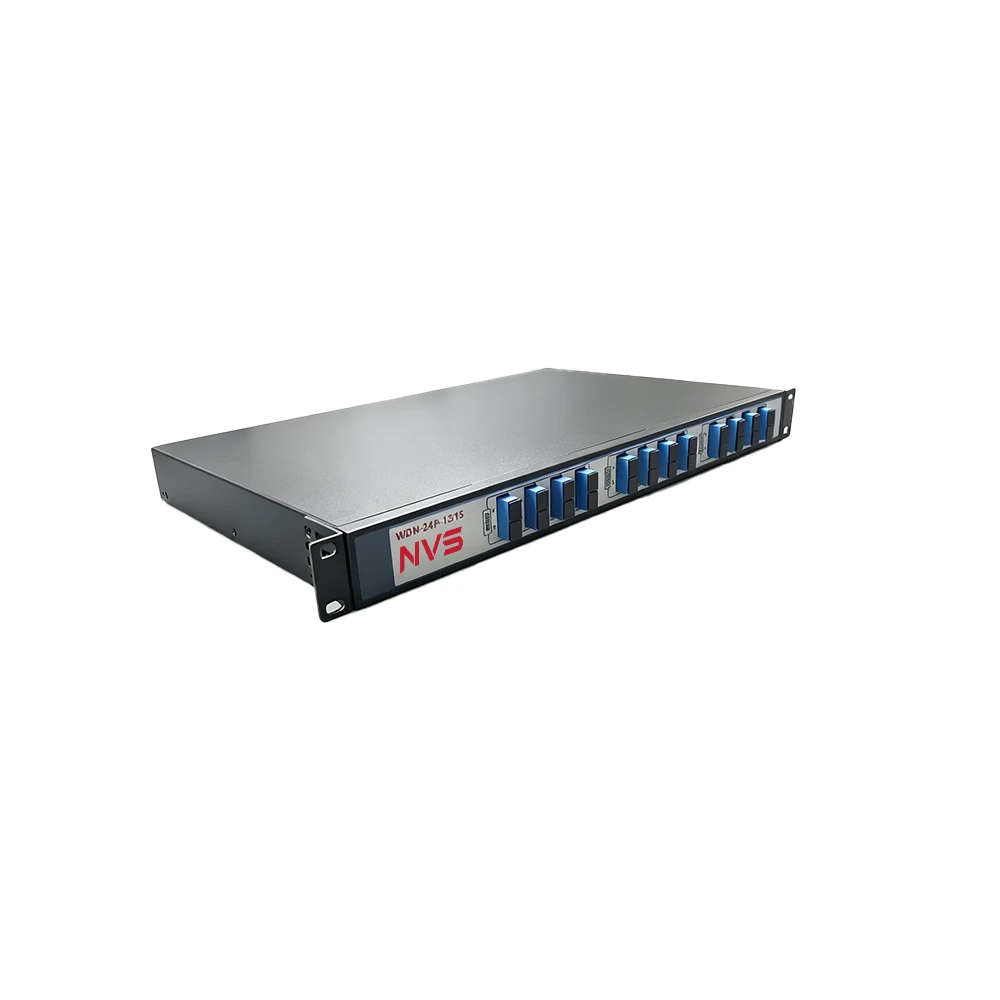

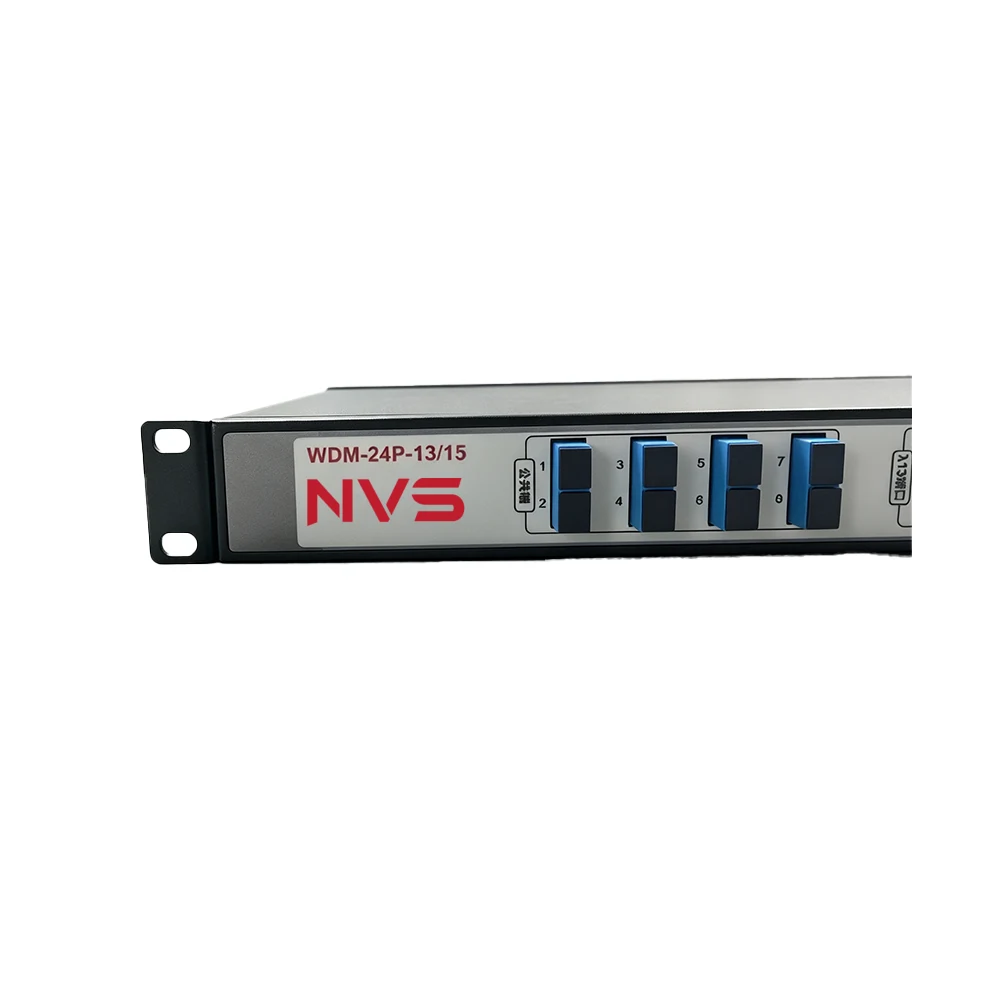

Passive WDM Device WDM600
WDM600 is a standard 1U rack-mounted passive wavelength division multiplexing (WDM) device with multiple built-in independent WDM components. It multiplexes two or more wavelength bands onto a single fiber for transmission, or demultiplexes the combined signal back into individual wavelength bands at the receiving end.
Standard 19-inch 1U rack design, 44.45 mm high, for easy equipment-room deployment.- Multiple independent WDM components built in, configurable to N groups of independent WDM channels.
- Multiplexing: combines two or more wavelength bands onto a single fiber for transmission.
- Demultiplexing: restores the combined signal into individual wavelength bands at the receiving end.
- Isolation ≥30 dB between adjacent wavelengths and directivity ≥55 dB ensure reliable multiplexing performance.
Technical Parameters
ParameterSpecification
- Number of channels
- N groups of independent WDM channels
- Isolation
- ≥30 dB (between adjacent wavelengths)
- Installation
- Standard 19-inch rack mount (1U, 44.45 mm high)
- Directivity
- ≥55 dB
